Alseye Fan Casing LED RGB SOONCOOL - CLS200

Fan Casing and CPU

Rp. 200.000




Alseye


Code    :  50562420

Weight :  0.41 kg

Stock   :  2


Description

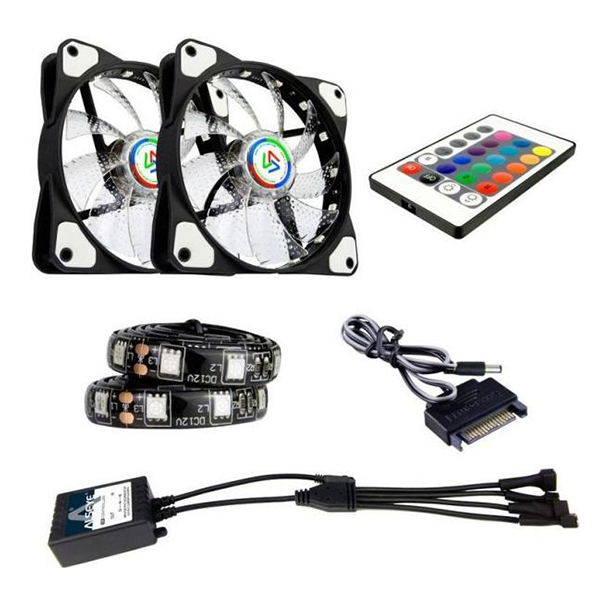

One set CLS-200 included:

  • RGB fan : 2 piece
  • RGB strip : 2 piece

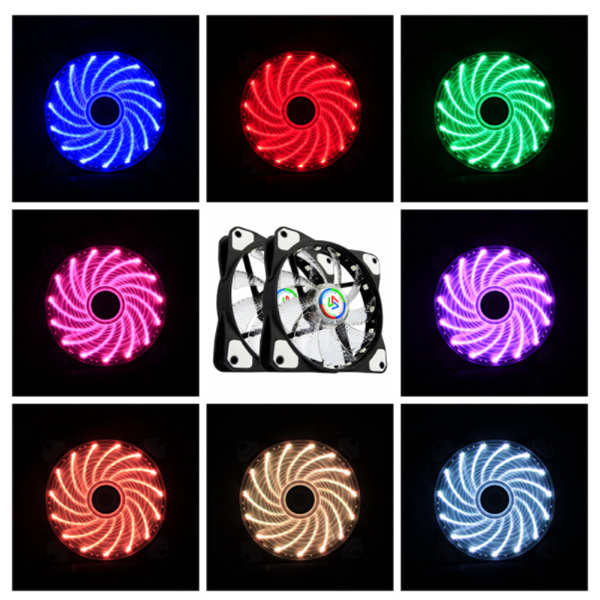

Fans Specifications:

  • Input Power ------------ 2.4W
  • Dimension --------------- 120x120x25mm
  • Weight ------------------- 120g
  • Voltage ------------------ 12V
  • Current ------------------ 0.2A
  • Fan Speed -------------- 1300±10% R.P.M.
  • Air Flow ----------------- 41.4CFM±10%
  • Air Pressure ------------ 1.21mmH2O
  • Bearing Type ----------- Hydraulic
  • Noise Level ------------- 21dB(A)
  • Life Expectancy ------- 40,000h
  • Connectors ------------- 3pin(2510)   / Fan   + 4pin  (2.54)   /  LED
  • LED Light Qty. ---------- 15pcs
  • LED   Colors --------------- RGB (over 10 colors)
  • LED Input Power ------ 0.4-1.5W
  • LED Current ------------ 0.043-1.5A

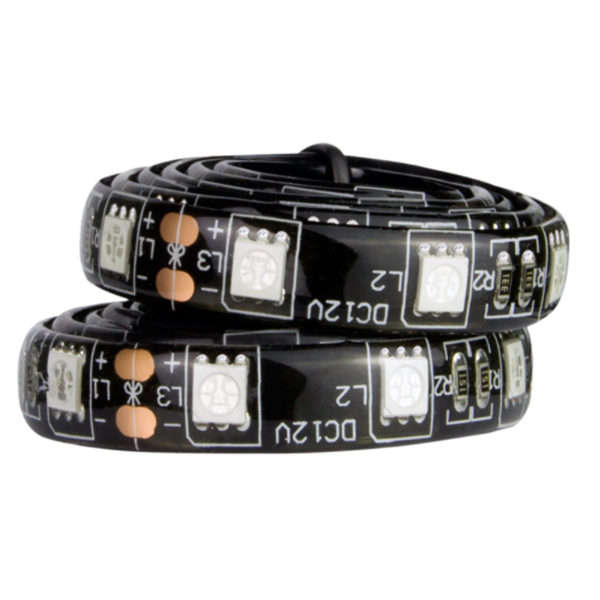

LED Strip Specifications:

  • Chip ------------------------------ 5050
  • Strip Length -------------------- 300mm
  • Extended Cable Length ----- 500mm
  • Installation method ---------- Magnetic
  • LED Colors --------------------- RGB (over 10 colors)
  • LED Light Qty. ----------------- 18pcs
  • LED Rated Power ------------- 90mW
  • LED Rated Current ------------ 20mA
  • LED Peak Current ------------- 100mA
  • LED Rated Voltage ------------ DC 12V
  • Working Temperature -------- -20 ~ +60℃
  • Storage Temperature -------- -35 ~ +80℃
  • Weight --------------------------- 15g

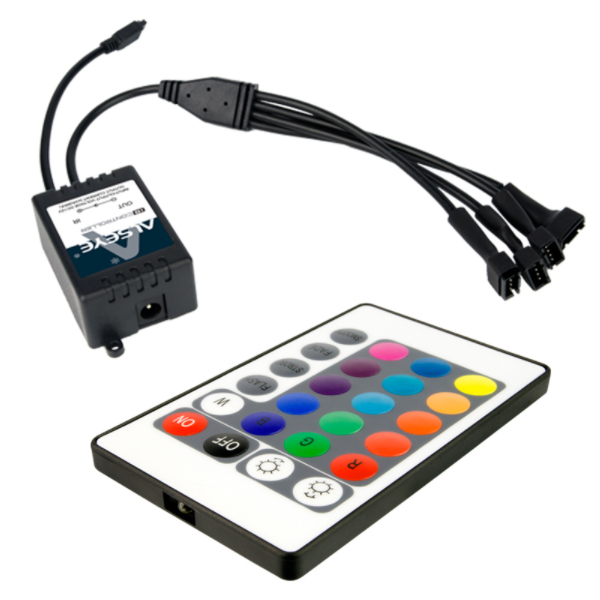

Infrared remote controller Specifications:

  • Working temperature ----------  -20-60 ℃
  • Voltage supply ------------------ DC12V
  • Output ---------------------------- 4 channels
  • Connecting mode -------------- common anode or common cathode
  • External dimension ------------ L49.5ΧW34.5ΧH22 mm
  • Net weight ----------------------- 50g
  • Gross weight -------------------- 71g
  • Static power consumption ---- <1 W
  • Output current ------------------ < 2 A (each channel)
  • Output power ------------------- 12V : <72W
